Geometric frames are the fastest-growing shape category in eyewear. Hexagonal, octagonal, and angular designs now account for roughly 15% of new frame launches in 2026 — up from under 5% in 2022. For B2B buyers, geometric frames present both the highest design differentiation and the highest manufacturing risk of any shape category. A hexagonal frame with uneven sides or rounded corners where there should be sharp angles looks like a mistake, not a design choice.
This guide covers the four geometric shapes that sell, the brands that define the category, and the manufacturing specifications that separate a premium geometric frame from a failed experiment.
Four Geometric Shapes That Sell in 2026

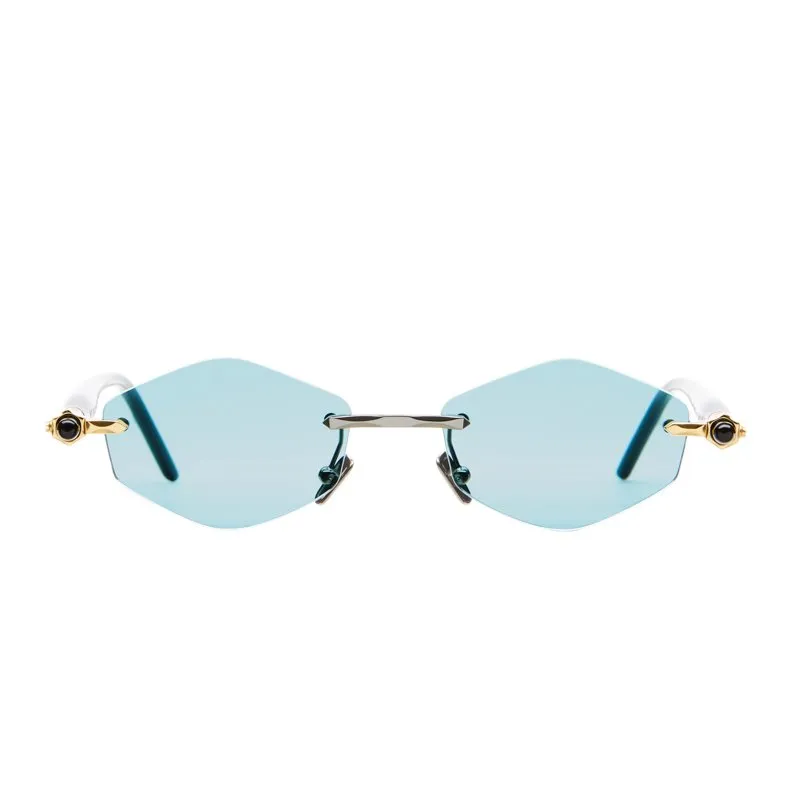

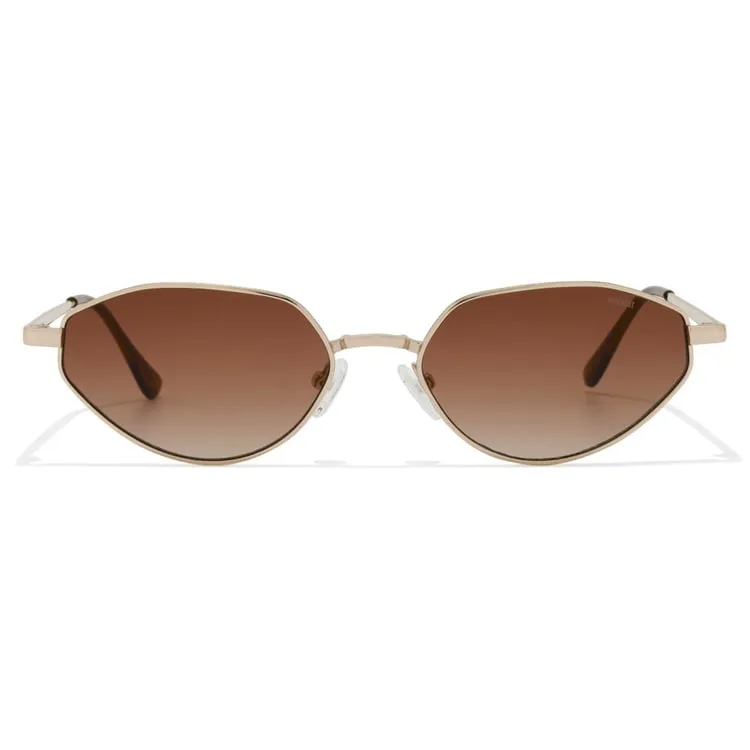

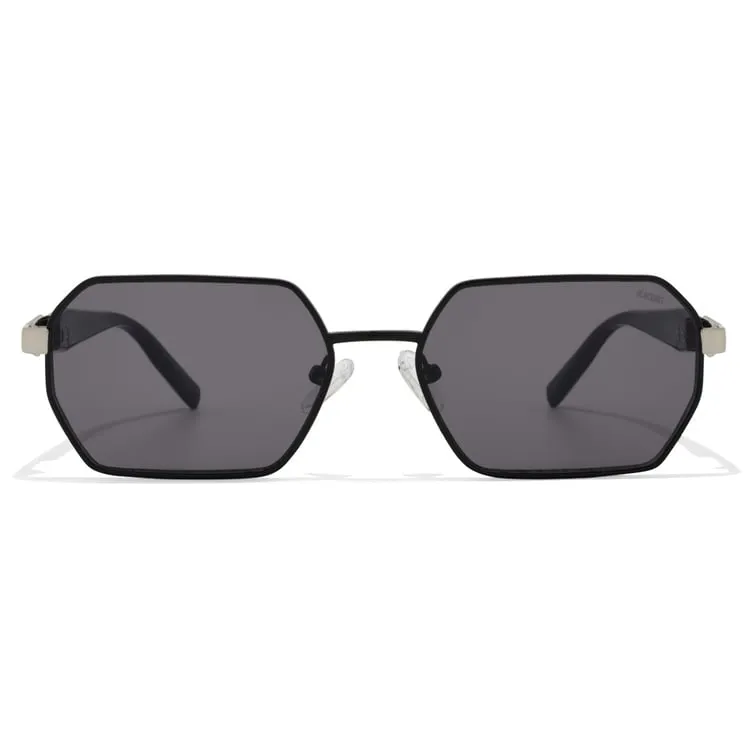

1. Hexagonal
Six sides, six vertices. The most commercially successful geometric shape because it is bold without being extreme. Ray-Ban Hexagonal and Warby Parker‘s geometric options proved that hexagonal frames can sell at volume, not just as niche pieces.
Critical quality marker: all six sides must be visually equal length. On a budget 3-axis CNC, the top and bottom sides are noticeably shorter than the left and right — the frame looks “squished.” Premium hexagonal frames use 4-5 axis CNC at ±0.1mm tolerance to maintain equal sides.

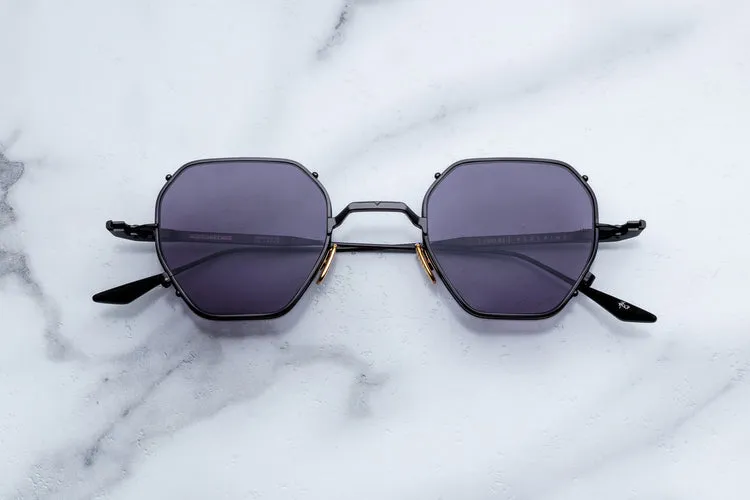

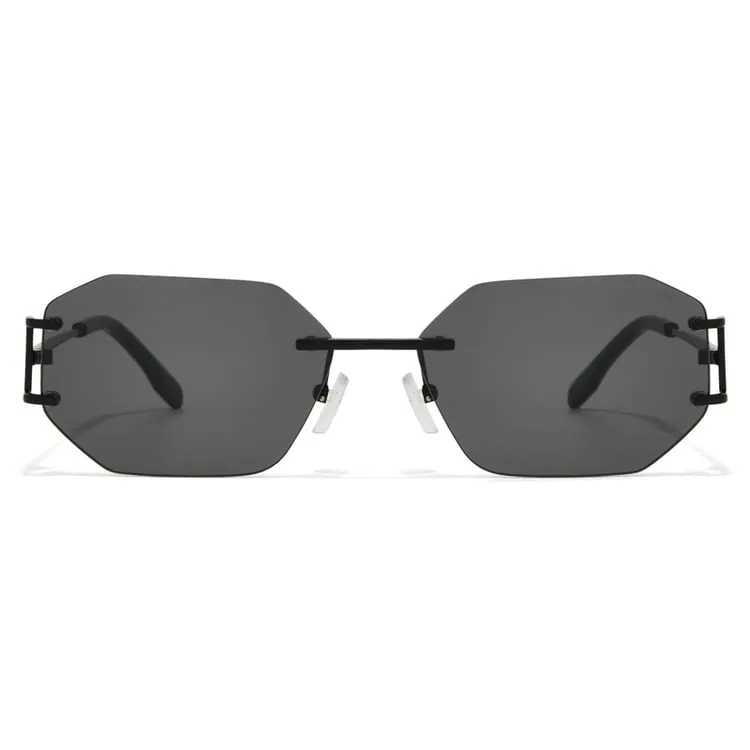

2. Octagonal

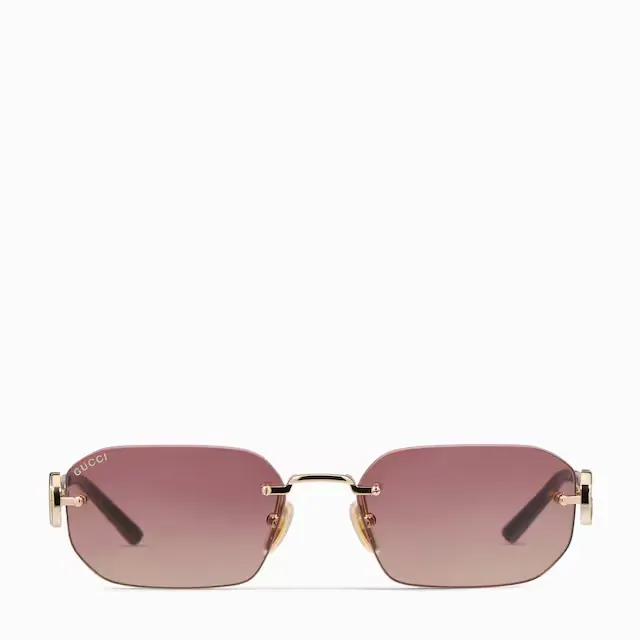

Eight sides, softer angles than hexagonal. More “designed” than hexagonal because the human eye expects octagonal shapes to be precise — there is no natural octagon to reference. Prada and Gucci used octagonal sunglasses in their 2026 runway shows. The shape is gaining traction in both optical and sun.

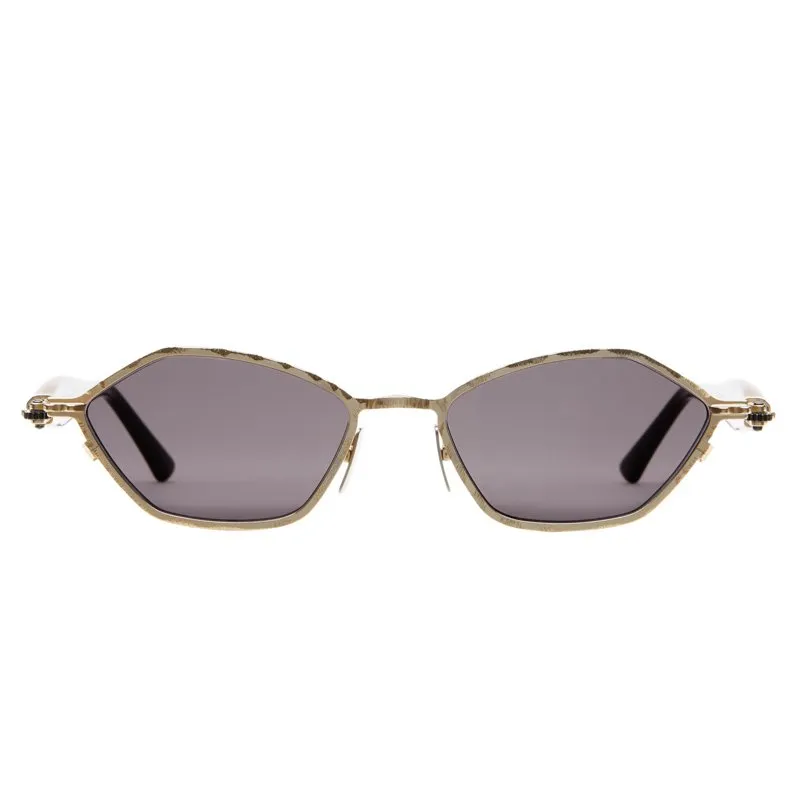

3. Angular / Architectural

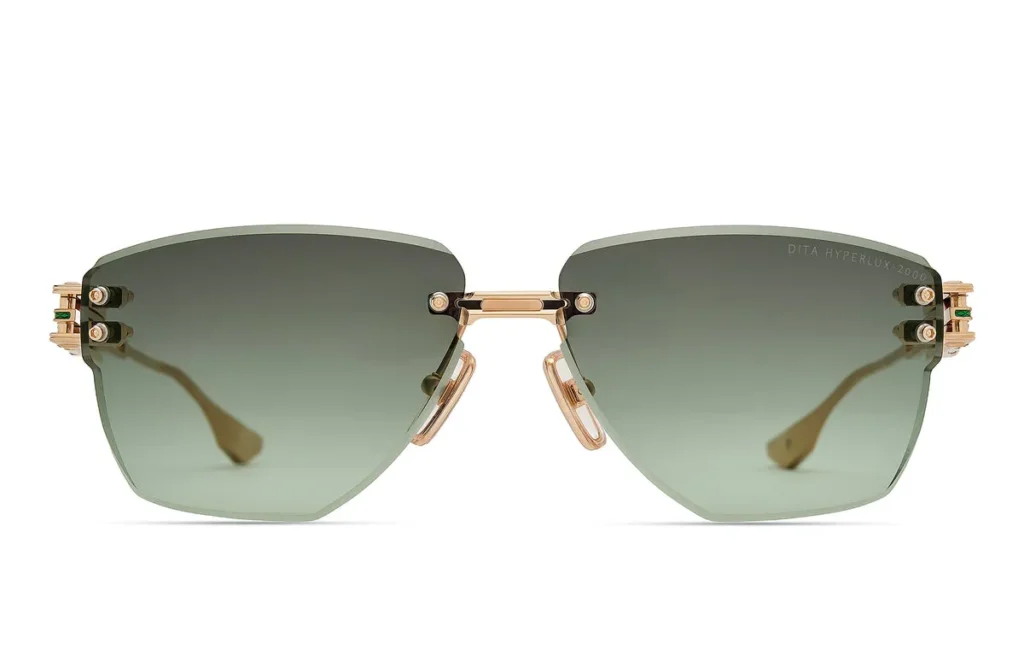

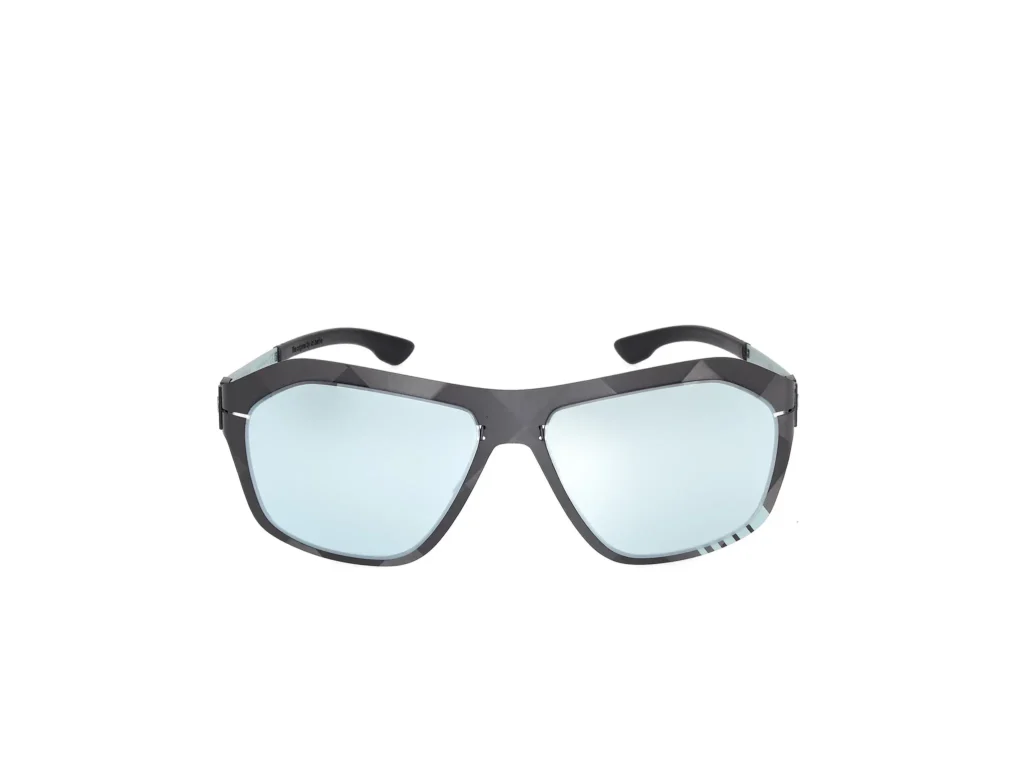

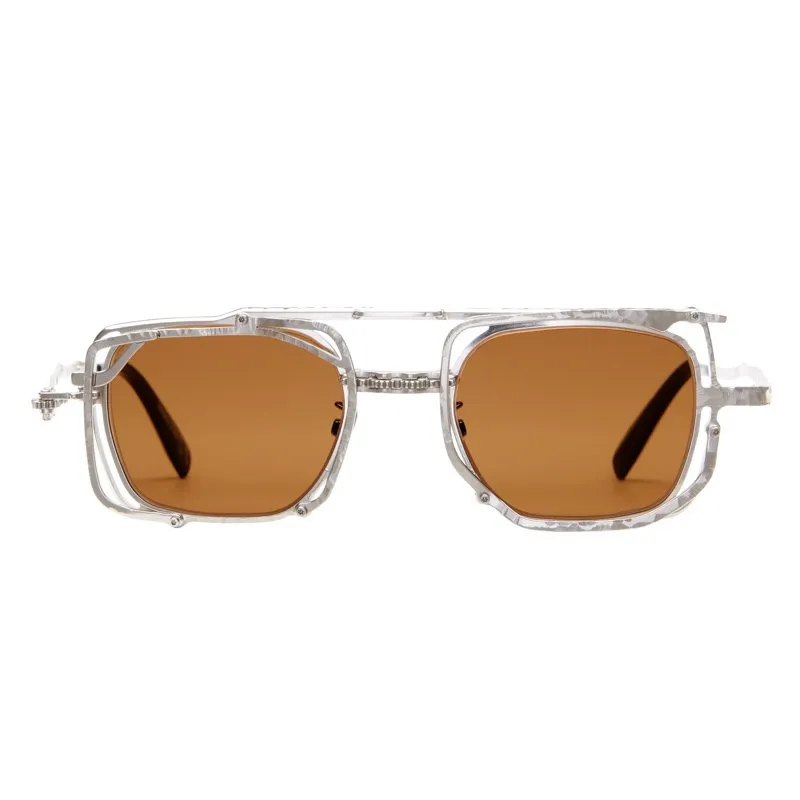

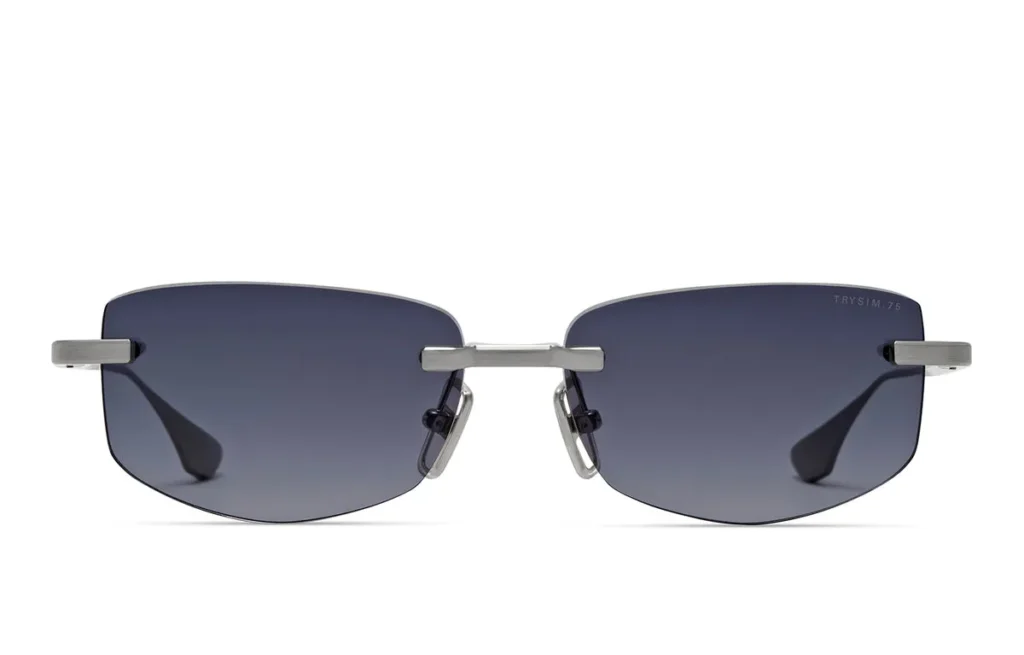

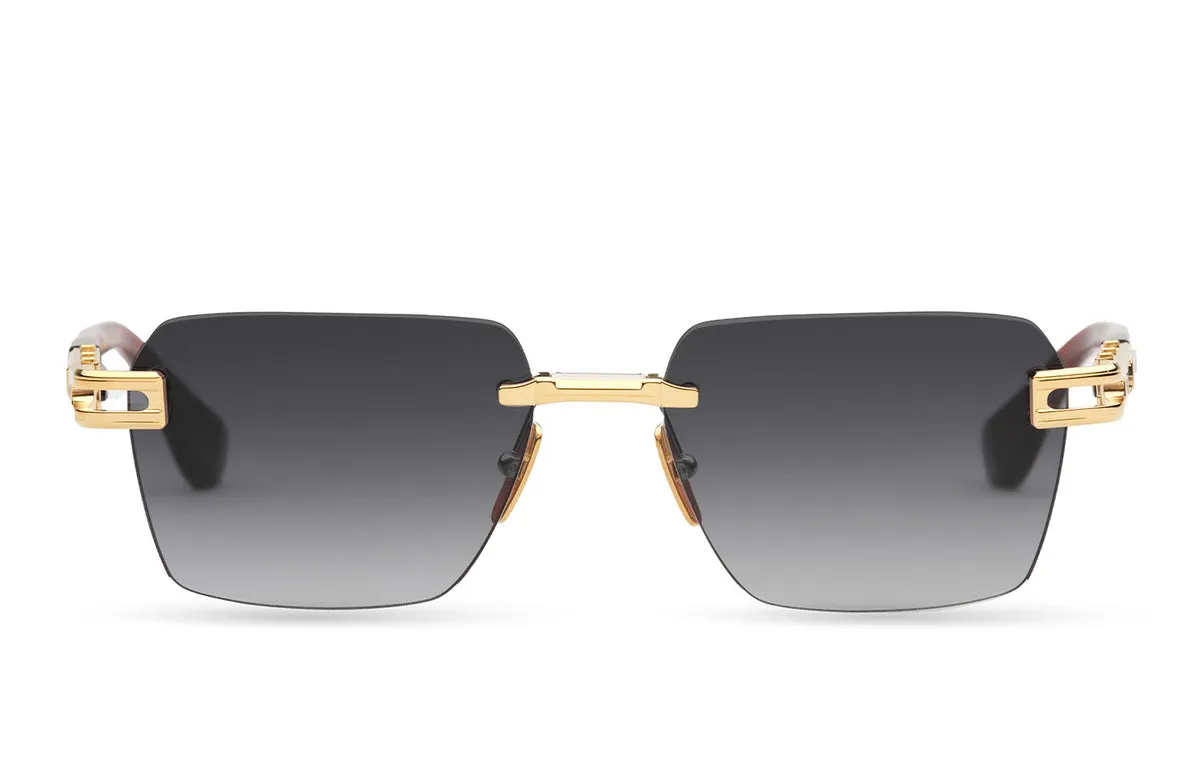

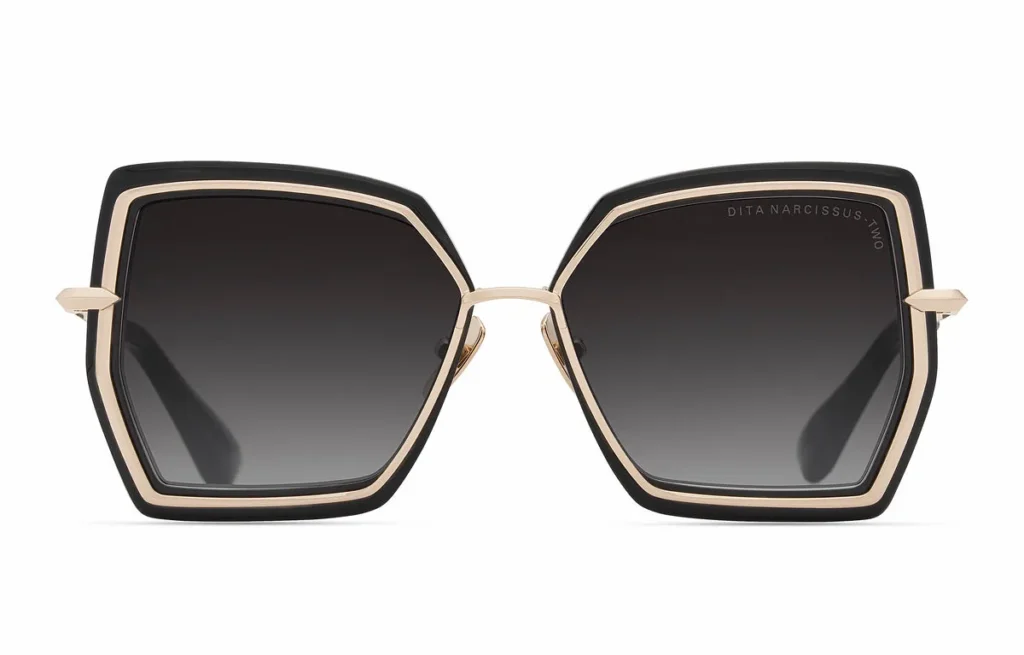

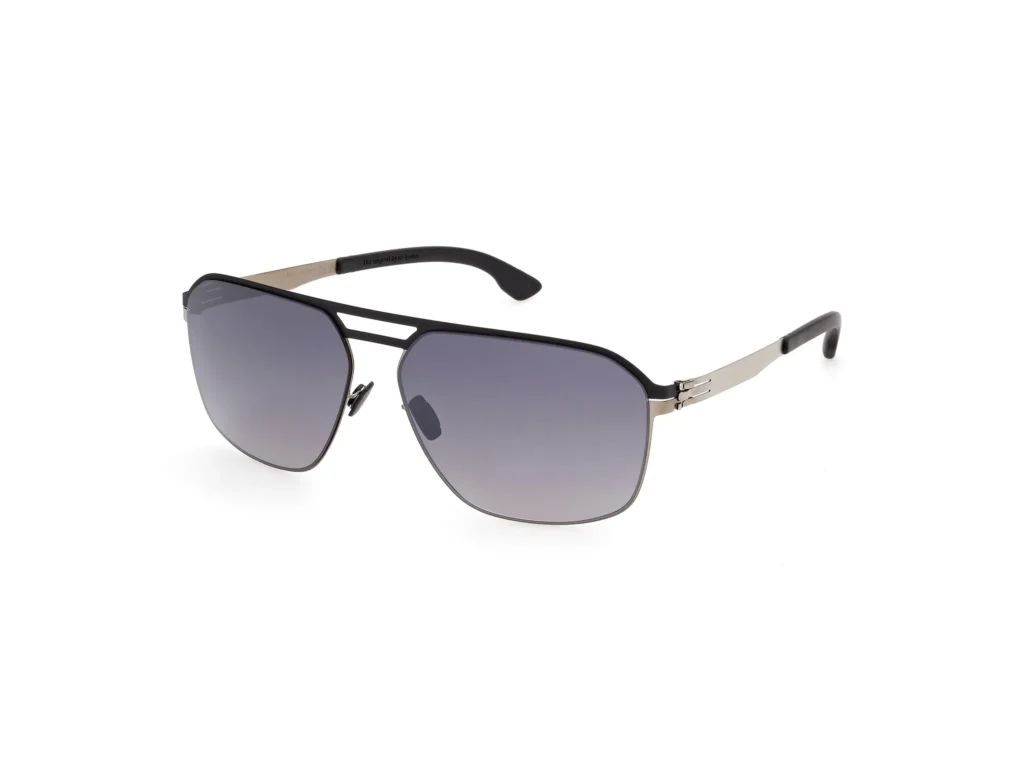

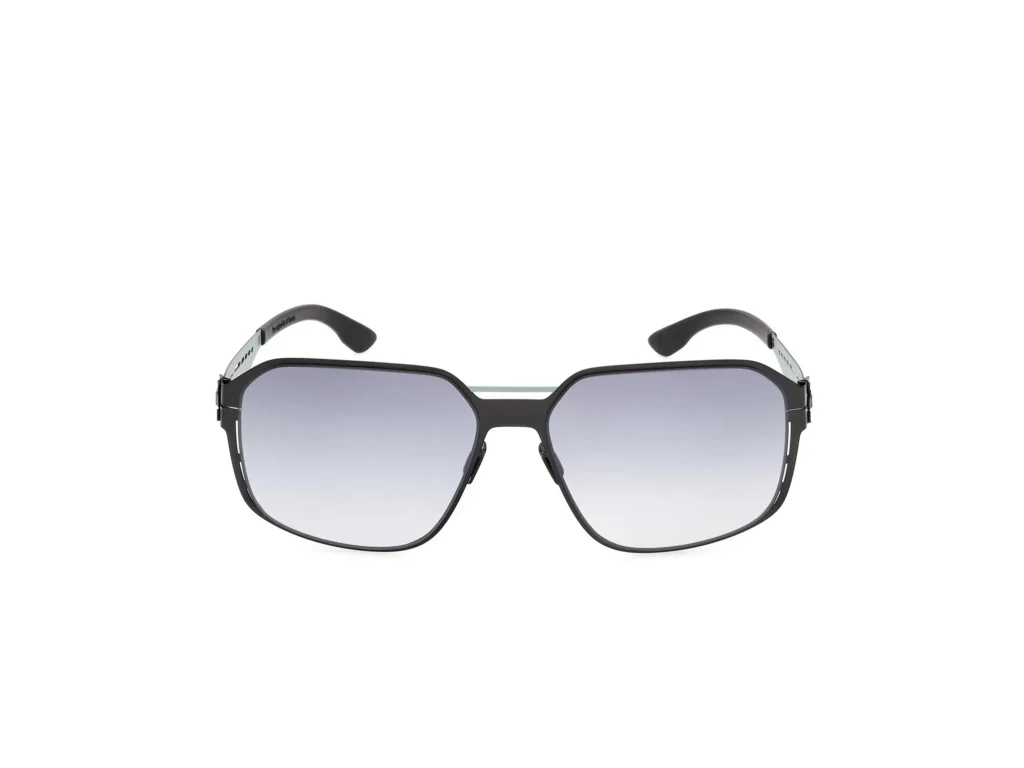

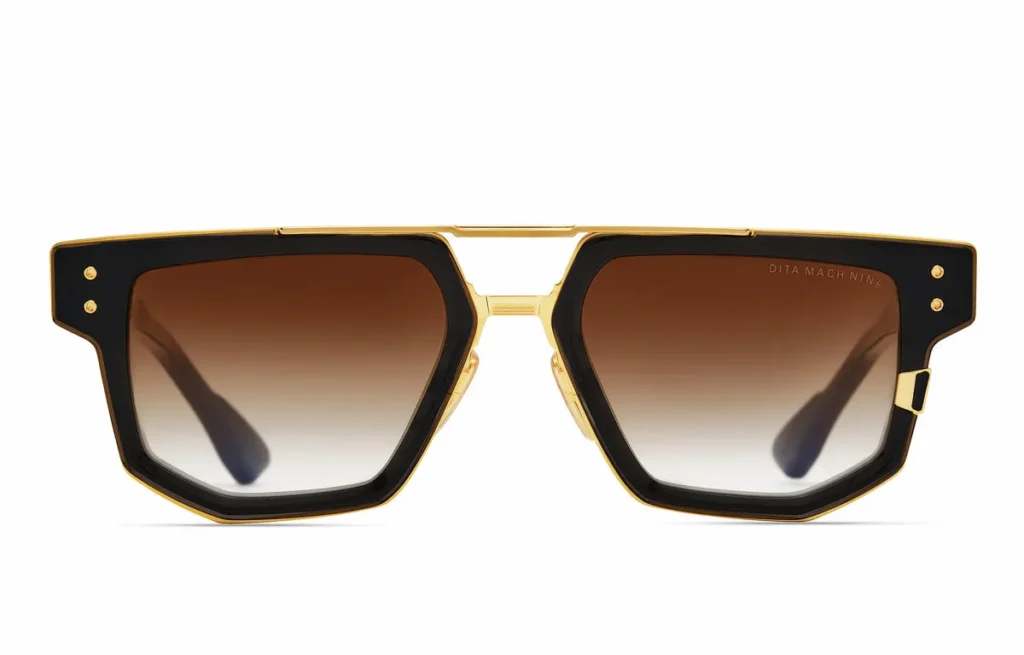

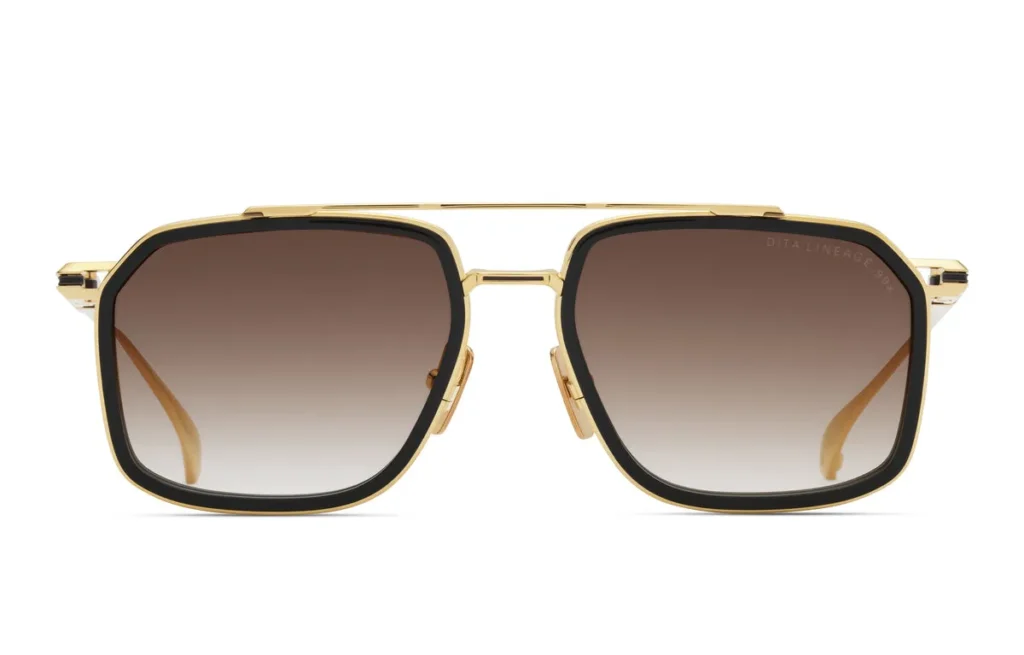

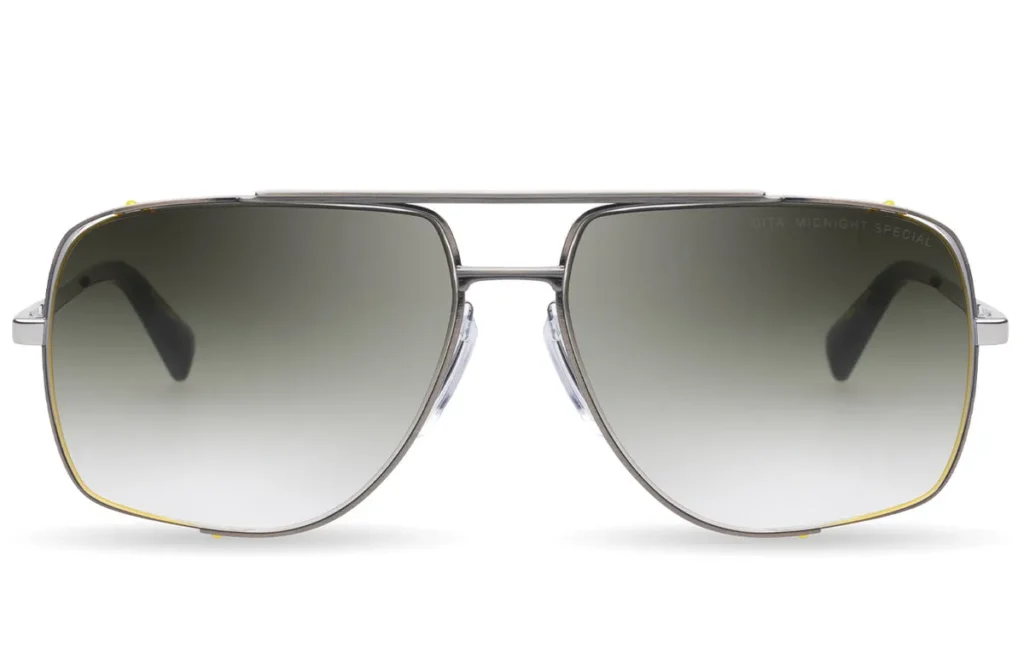

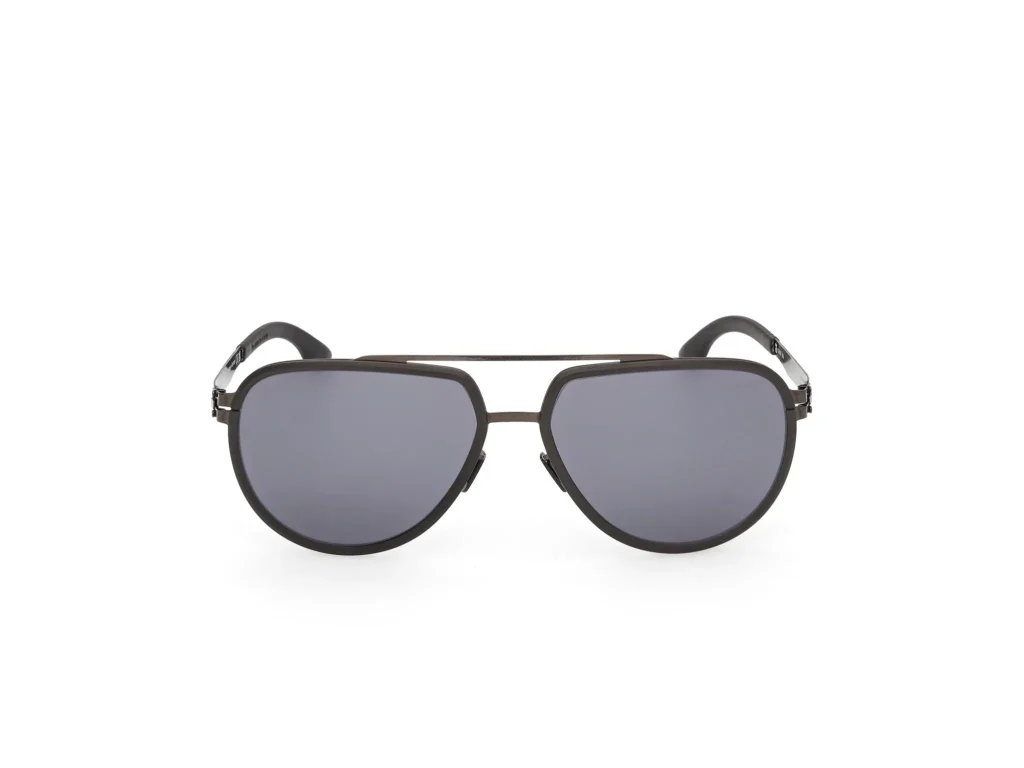

Not a regular polygon — these are frames with deliberate asymmetric angles, notched corners, or faceted edges. Dita and ic! berlin are the benchmarks. This is the design-forward end of geometric — higher price points, lower volumes, but strong margin.
4. Asymmetrical / Sculptural

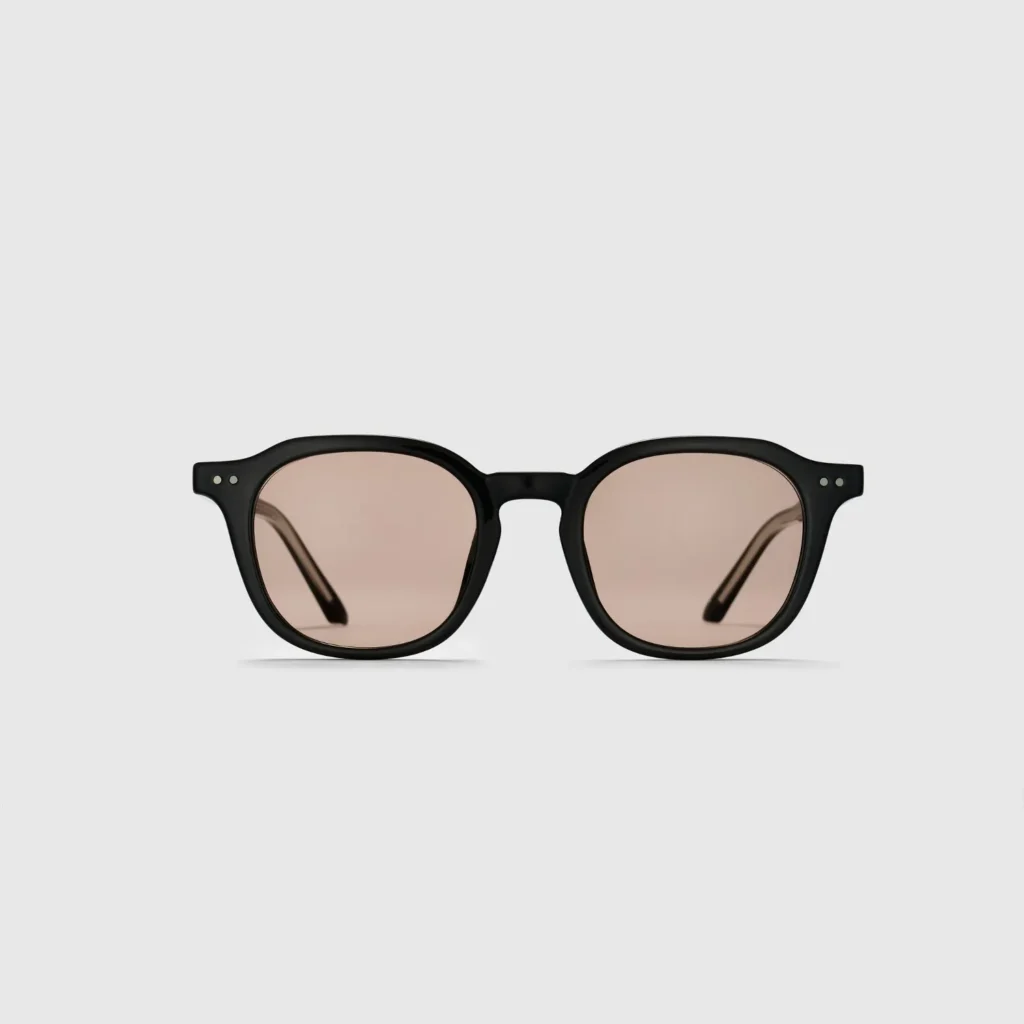

Frames where left and right are deliberately different — different temple widths, offset bridges, or frames that are wider on one side. This is Gentle Monster‘s “weird beauty” territory. Small volumes but disproportionate social media impact.
Brand Benchmarks by Price Tier
Design-Led Premium ($300+)

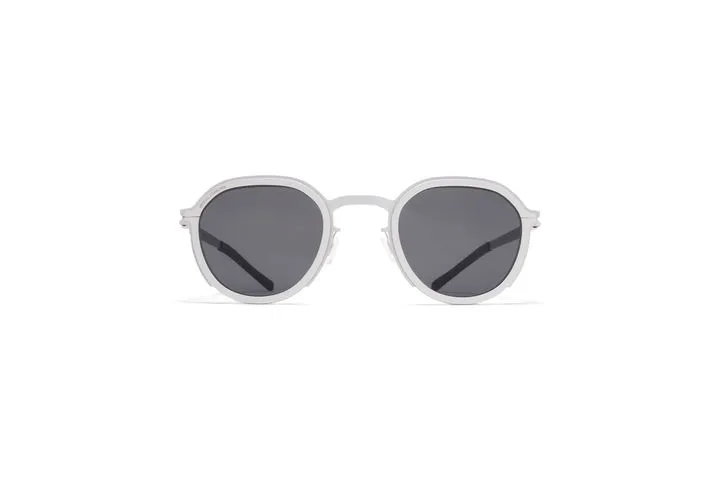

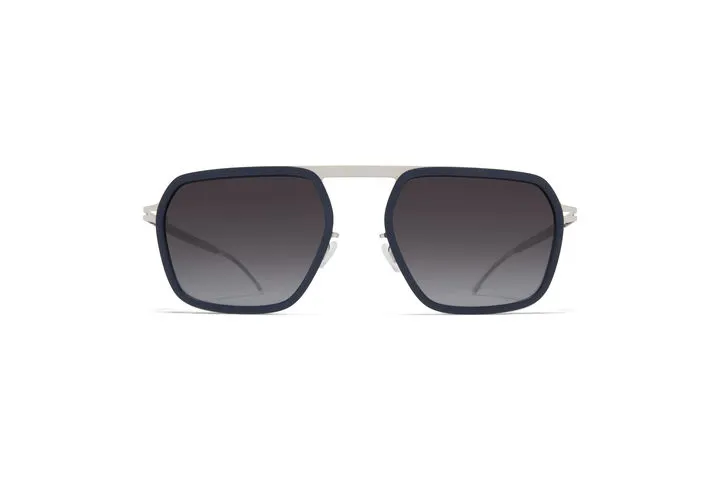

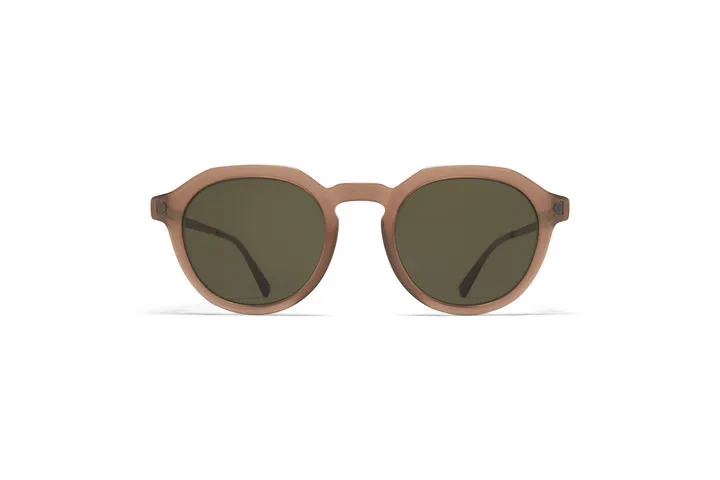

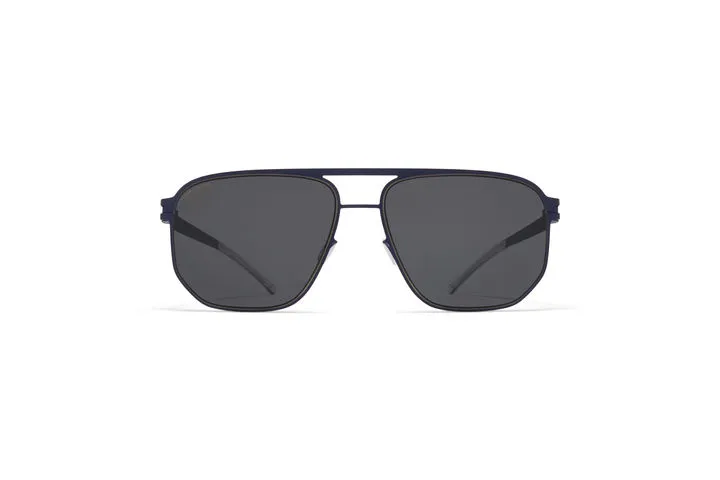

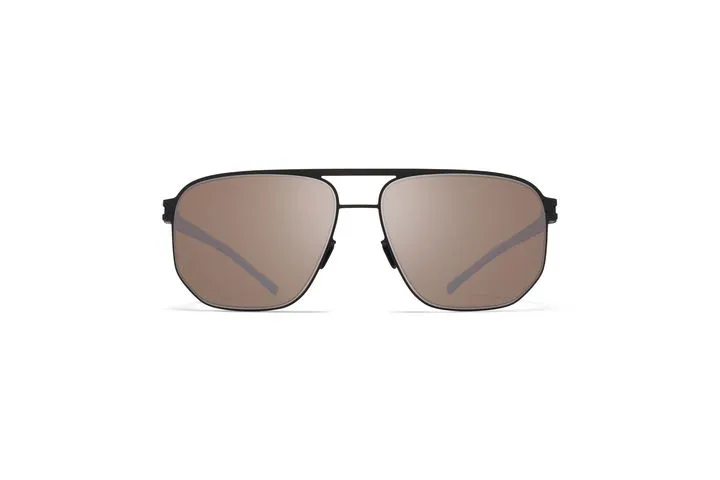

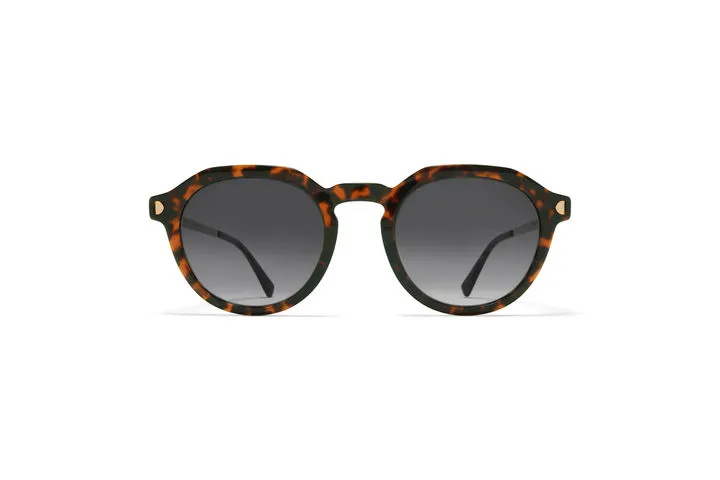

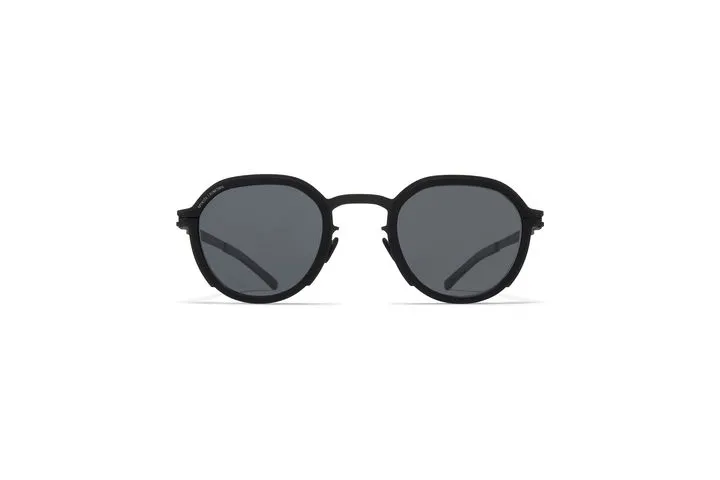

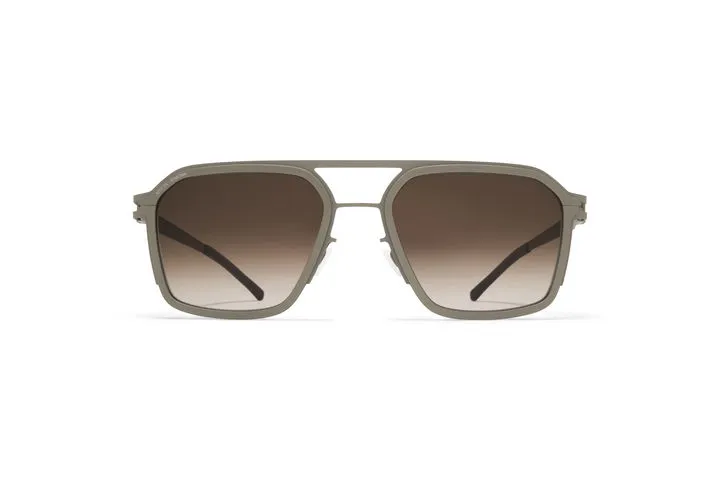

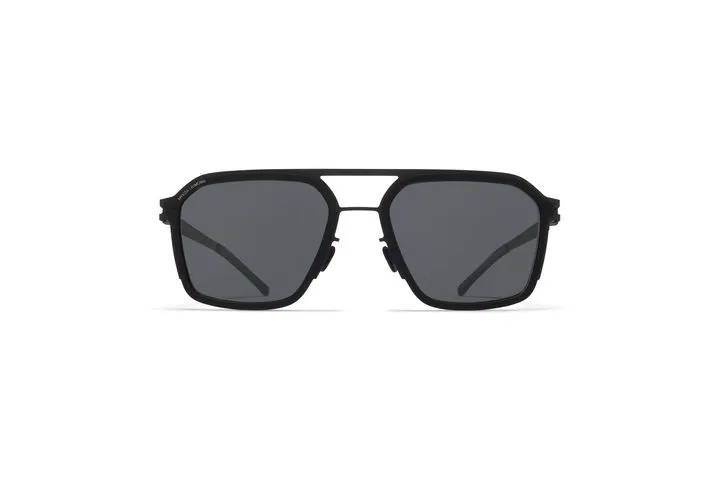

MYKITA (€350–€600) produces geometric frames in stainless steel with laser-cut precision. Their hexagonal frames are engineering statements — every angle measured, every edge finished. The lesson: geometric frames at premium prices need to be visibly precise. Any wavering edge is a deal-breaker.
LINDBERG (€300–€800+) offers geometric titanium frames with an air titanium construction. Wire-thin geometric shapes that could not exist in acetate. The lesson: titanium enables geometric shapes that acetate cannot — thinner lines, sharper angles, less material weight.
Mid-Range Volume ($80–$300)

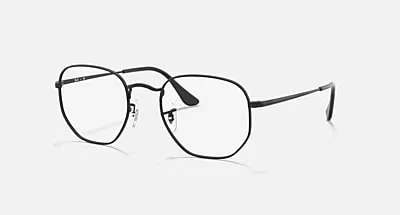

Ray-Ban Hexagonal ($180–$250) brought geometric to the mainstream. Their metal hexagonal frame is one of the most copied shapes in eyewear. The lesson: geometric at volume works best in metal or thin acetate — thick geometric acetate is too heavy and too risky for mainstream consumers.
Warby Parker ($95–$175) offers geometric shapes in both acetate and metal. Their approach: keep the geometric angles moderate — more “updated classic” than “fashion experiment.”
Manufacturing Requirements for Geometric Frames
CNC Precision
Geometric frames expose CNC precision in a way that round or oval frames do not. On a rounded frame, a 0.3mm deviation is invisible. On a hexagonal frame, a 0.3mm deviation on one side makes the whole frame look asymmetrical.
- 4-5 axis CNC at ±0.1mm: Required for premium geometric frames. Every side is equal, every angle is sharp.
- 3-axis CNC at ±0.3-0.5mm: Acceptable for soft geometric shapes (rounded hexagons, octagons with radius corners). Not acceptable for sharp angular designs.
Edge Finishing
Geometric frames have more edges per frame than any other shape. Every edge needs to be finished to the same standard. The typical polishing sequence:
- P400 grit to remove CNC marks
- P800 grit for smoothness
- P1200-2000 for pre-polish
- 3-stage barrel polish (wood media, 36-72 hours)
- Double hand-polish (felt wheel + muslim cloth wheel)
Skipping any stage is visible on geometric frames because the many edges create multiple reflection points where imperfections show.
Mold Requirements for TR90 Geometric
S136 stainless steel molds are mandatory for TR90 geometric frames. The sharp angles of hexagonal and octagonal shapes require mirror-polished mold cavities (Ra ≤ 0.025 μm). P20 or 718H steel molds will produce geometric frames with visible mold lines at the vertices — which looks like poor quality, not a design choice.
Structural Considerations
Geometric frames concentrate stress at their vertices (corners). A hexagonal frame has six stress concentration points. To prevent cracking:
- Acetate thickness at vertices must be at least 3mm
- Internal corner radii should be 1-2mm (not sharp internal corners)
- Acetate must be properly cured (14-28 days post-cutting) to relieve internal stress
Wenzhouframe Geometric Frame Capabilities
- CNC machining: 4-5 axis CNC at ±0.1mm tolerance. All geometric shapes — hexagonal, octagonal, angular, asymmetric.
- Material options: Acetate (Mazzucchelli 1849 / JH800), TR90 (certified / Grilamid LX), titanium, stainless steel, and mixed-material constructions.
- Mold quality: S136 molds standard for all TR90 geometric frames. H13 for high-volume acetate geometric.
- Edge finishing: Full P400→P2000 grind sequence + 3-stage barrel polish + double hand-polish. Every edge finished, no shortcuts.
- Structural engineering: Vertex reinforcement, internal corner radii, and proper acetate curing built into every geometric frame.
Need geometric frame samples? Send us your design references — we will assess manufacturability and quote with the right CNC and mold specifications.
